Product Description

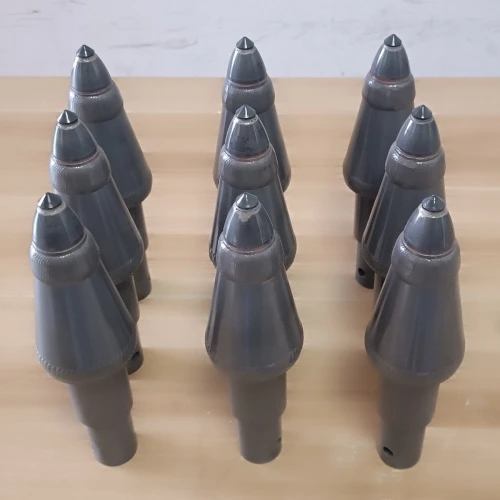

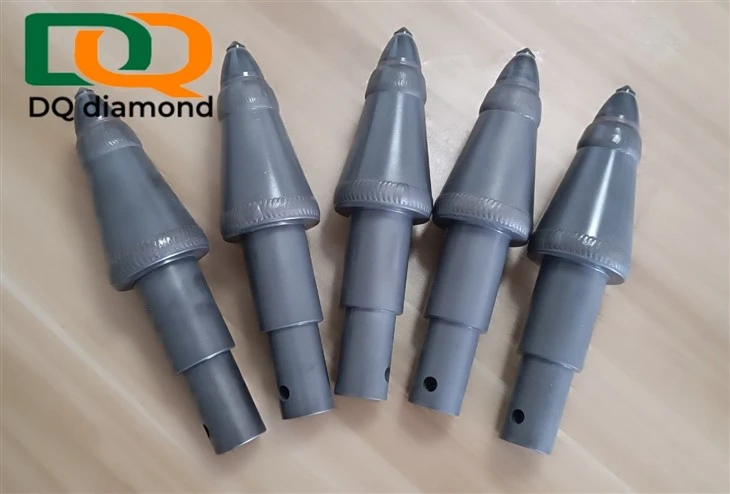

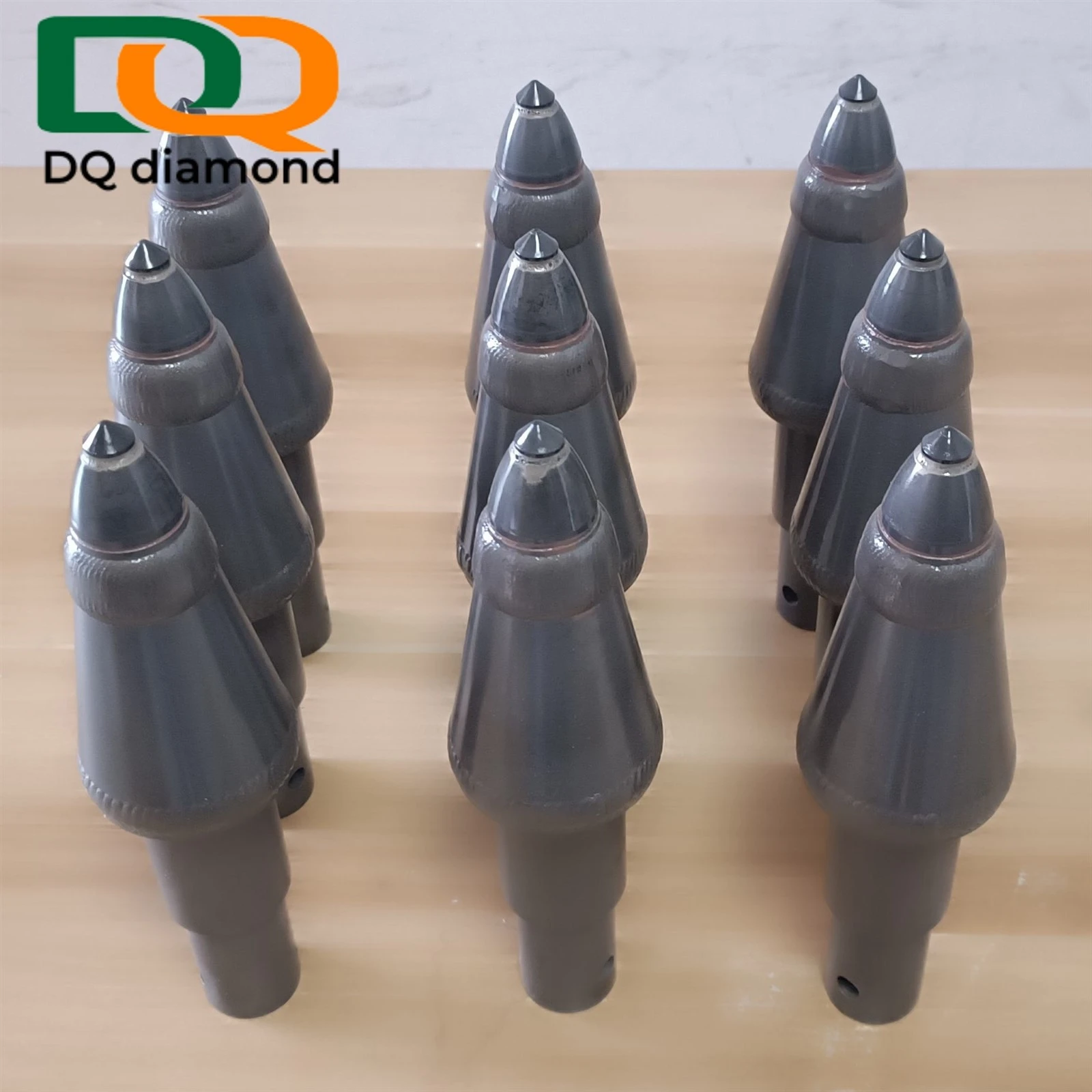

PDC Pick (PDC Point Attack Pick) is a high-end product specially designed by DQ DIAMOND for mining and foundation engineering. By replacing the tungsten carbide material of the cutting teeth with Polycrystalline Diamond composite material (PDC Cutter), this product is mainly used as the primary cutting teeth of large mining machines such as Coal Shearer Picks and rotary drilling rigs.
The product is manufactured by sintering the diamond layer and Tungsten Carbide Substrate (WC Matrix) at high temperature and high pressure. The diamond layer is compounded with countless microscopic diamond particles and bonding agents after strict ratio design, which gives the product ultra-high hardness, Wear Resistance (Abrasion Resistance), and unique ultra-fine Self-sharpening Ability; The Tungsten Carbide Substrate has good Impact Resistance (High Impact Toughness), and the two are perfectly matched to meet complex and harsh working conditions.
Product Advantage
- Wear Resistance: Made of premium selected materials, its Abrasion Resistance is 8 to 10 times stronger than ordinary steel or conventional hard alloy cutting heads.
- Safe and Explosion-proof: During the process of high-speed cutting and rock breaking, the tools remain completely Spark-free (No-sparking), reducing the risk of underground gas explosion and ensuring safe production.
- Strong and Impact-resistant: The Forged Body is made of high-quality 42CrMo Steel Body, and the special heat treatment quenching process makes full use of the material's properties to obtain optimum hardness and high toughness; The advanced Brazing (High-strength Brazing) technology ensures that the tip eliminates the risk of brazing joint failure.
- Cost-effective Mining: It achieves an Extended Tool Life (Long Service Life), effectively reducing downtime and pick replacement labor costs, thereby improving mining efficiency and ensuring a High Penetration Rate.
Hot Tags: pdc picks & point attack picks for mining, China pdc picks & point attack picks for mining manufacturers, factory
Product Specifications
| Item Name | Technical Specifications and Description |
| Material | High-quality polycrystalline diamond composite (PDC) sheet + tungsten carbide matrix + 42CrMo alloy steel body |
| Manufacturing process | Precision forging, special heat treatment/quenching, high-strength brazing |
| Applicable coal seams | Mining of whole-rock coal seams, half-rock coal seams, and whole-rock hard strata. |
| Quality control | 100% new raw materials, online inspection throughout the production process, and rigorous factory testing of finished products. |
We provide you with standard sizes and mainstream models that are fully compatible for your selection:
- Standard Sizes: U82, U84, U92, U94, U95, U170, U135, S200, etc.
- Universal Fit for Foreign Models:
- Kennametal: C31, C31HD, C21, CM42, SM42HP17, SM42LR22, HF89, etc.
- Betek: B47K19, B47K17.5H, B47K25-F, B46K12, B3KS, etc.
- Non-standard Customization: In order to ensure users have more choices, we also support non-standard customization. If customers have any specific needs, you can send us the design drawings or samples. From raw materials to finished products, we will offer you unique customized solutions.
Technical Parameters & Applications
- Product Material: PDC Cutter + Tungsten Carbide Substrate + 42CrMo Steel Body
- Production Process: Precision Forging + Quenching Heat Treatment + High-strength Brazing
- Geological Suitability: Suitable for Coal Seam Mining, including Full-rock Seam (Hard Rock Formations), Half-rock Coal Seam (Mixed Face), and other Abrasive Formations or complex geology.
- Applications & Equipment: Mainly used as Longwall Mining Tools, Continuous Miner Picks, Roadheader Picks, road milling machines, trenching machines, etc. Applied in Underground Mining Picks and Surface Mining Picks for coal mines, iron mines, copper mines, and non-ferrous metal mining, as well as tunnels, road milling, and trenchless excavation engineering.
